Wooden windows

DJ 68 Standard windows
Windows DJ78 Energy-saving
Passive DJ92 windows

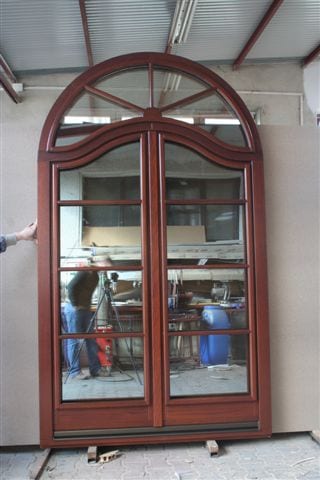

Retro windows - stylized
Windows and sliding terrace doors
RAMA profil DJ 92
  • FRAME profile Euro SOFTLINE gr 68mm
  • three-layer full size wood construction
  • window frame at the bottom part profiled for window sills
  • in the frame, we assemble a main thermo-drier that drains water onto the window sill
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Wing profil DJ 92
  • WINGS Euro SOFTLINE WINGS 68mm
  • three-layer full size wood construction
  • strip at the shaft pipe
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Glaziery
  • double glazed double glazed glass with heat coefficient Ug = 1.0
  • A NEW SOLUTION!
    In addition to the 92mm construction, it is possible to install four-glass glass with increased thermal and acoustic insulation Ug = 0.7
  • glass combined with a warm Termix frame or Chromatech spacer which improves heat transfer coefficient and eliminates settling of moisture and icing on the glass, especially in the kitchen or bathroom
  • the possibility of using glass with increased parameters
    P2, P4, bulletproof, etc. security
Sealing
  • glass mounted on a spacer expansion tape
  • sealing the glass from the inside with silicone
  • glass sealing from outside with silicone
Seals
  • casing seal white, brown
  • Edge seal white, brown
Eaves drip caps
  • in the frame, we assemble a main thermo-drip that brings water to the window sill
  • from the outside at the bottom of the wing is mounted a special strip that drains water to the window sill – drip cap
  • each wing has a double seal with thermo-acoustic gaskets
Painting
  • the whole construction varnished four times with modern varnishesi
    1. impregnating primer applied by dipping
    2. colored foundation applied by dipping
    3. between the layer applied by hydrodynamic technology
    4. surface applied by hydrodynamic technology
Fittings
  • envelope ROTO NT
  • all UR accommodation with microventilation
  • in the standard mechanism of the incorrect position of the handle
  • hinge covers in the color of the handle
  • the possibility of arming the fittings into Intrusion packages
  • the possibility of using all opening functions UR, R, U, sliding etc.
Handle
  • Door handle Roto or Hoppe in silver F1, olive (cognac) F3, titanium F9
Cross section of the DJ 68 window
Example window 1
Example window 2

Declaration of conformity CE

RAMA profile DJ 92
  • FRAME profile Euro SOFTLINE gr 78mm
  • three-layer full size wood construction
  • window frame at the bottom part profiled for window sills
  • in the frame, we assemble a main thermo-drier that drains water onto the window sill
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Wing profile DJ 92
  • profile WINGS Euro SOFTLINE gr 78mm
  • three-layer full size wood construction
  • glass near the window
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Glaziery
  • double glazed double glazed glass with heat coefficient Ug = 0.6
  • A NEW SOLUTION!
    In addition to the 78mm construction, four-glass glass can be installed
    with increased thermal and acoustic insulation Ug = 0.5
  • glass combined with a warm Termix frame or Chromatech spacer which improves the coefficient heat transfer and eliminates settling of moisture and icing on the glass especially in the kitchen or bathroom
  • the possibility of using glass with increased parameters
    P2, P4, bulletproof, etc. security
Sealing
  • glass mounted on a spacer expansion tape
  • sealing the glass from the inside with silicone
  • glass sealing from outside with silicone
Seals
  • casing seal white, brown
  • Edge seal white, brown
Eaves drip caps
  • in the frame, we assemble a main thermo-drip that brings water to the window sill
  • from the outside at the bottom of the wing is mounted a specialized fin that drains water on window sill – drip cap
  • each wing has a double seal with thermo-acoustic gaskets
Painting
  • the whole construction varnished four times with modern varnishes
  1. impregnating primer applied by dipping
  2. colored foundation applied by dipping
  3. between the layer applied by hydrodynamic technology
  4. surface applied by hydrodynamic technology
Fittings
  • envelope ROTO NT
  • all UR accommodation with microventilation
  • in the standard mechanism of the incorrect position of the handle
  • hinge covers in the color of the handle
  • the possibility of arming the fittings into Intrusion packages
  • the possibility of using all opening functions UR, R, U, sliding etc.
Handle
  • Roto or Hoppe handle in silver F1, olive (cognac) F3, titanium F9

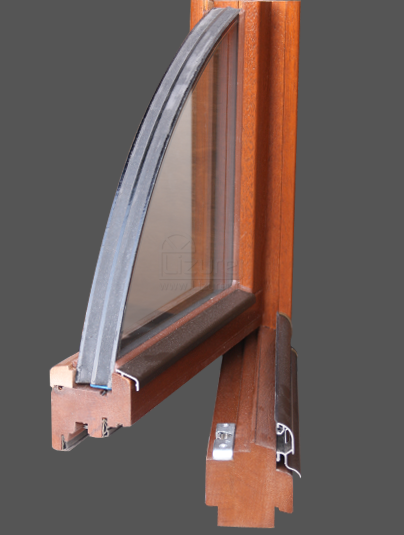

Cross section of the DJ 78 window
Implementation 1
Implementation 2

Declaration of conformity CE

RAMA profile DJ 92
  • FRAME profile Euro SOFTLINE gr 92mm
  • three-layer full size wood constructiono
  • window frame at the bottom part profiled for window sills
  • in the frame, we assemble a main thermo-drier that drains water onto the window sill
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Wing profile DJ 92
  • profile WING Euro SOFTLINE gr 92mm
  • three-layer full size wood construction
  • glass near the window
  • slightly rounded edges R6-R9, which increases the durability of the paint surface
Glaziery
  • double glazed double glazed glass with the heat coefficient Ug = 0.5
  • A NEW SOLUTION!
    In addition to the 92mm construction, four-glass glass can be installed
    with increased thermal and acoustic insulation Ug = 0.4
  • glass combined with a warm Termix frame or Chromatech spacer which improves the coefficient heat transfer and eliminates settling of moisture and icing on the glass especially in the kitchen or bathroom
  • the possibility of using glass with increased parameters
    P2, P4, bulletproof, etc. security
Sealing
  • glass mounted on a spacer expansion tape
  • sealing the glass from the inside with silicone
  • glass sealing from outside with silicone
Seals
  • casing seal white, brown
  • Edge seal white, brown
Eaves drip caps
  • in the frame, we assemble a main thermo-drip that brings water to the window sill
  • from the outside, a special water drainage strip is installed at the bottom of the wing window sill – drip cap
  • each wing has a double seal with thermo-acoustic gaskets
Painting
  • the whole construction varnished four times with modern varnishes
  1. impregnating primer applied by dipping
  2. colored foundation applied by dipping
  3. inter-coat applied by hydrodynamic technology
  4. surface applied by hydrodynamic technology
Fittings
  • envelope ROTO NT
  • all UR accommodation with microventilation
  • in the standard mechanism of the incorrect position of the handle
  • hinge covers in the color of the handle
  • the possibility of arming the fittings into Intrusion packages
  • the possibility of using all opening functions UR, R, U, sliding etc.
Handle
  • Roto or Hoppe handle in silver F1, olive (cognac) F3, titanium F9
Cross section of the DJ 92 window
Implementation 1
Implementation 2

Declaration of conformity CE

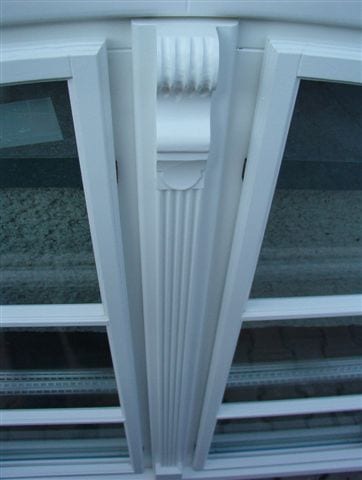

  • Decorative strips on movable posts
  • Decorative strips for a fixed post
  • Slats on ślem (crossings)
  • Housing drip caps at the bottom of the frame
  • Different types of muntins
Implementation 1
Implementation 2
Implementation 4
Implementation 5
Implementation 9
Implementation 10
Implementation11
Implementation 22
Implementation 24
Implementation21
Implementation 3
Implementation 23
Implementation 8
Implementation 6
Implementation 7
Implementation 12
Implementation 13
Implementation 14
Implementation 15
Implementation16
Implementation 17
Implementation 18
Implementation 19
Implementation 20

Patio windows sliding DOOR-FREE Roto patio LIFE

Implementation 1
Implementation 2
Implementation 3
Implementation 4
Implementation 5
Implementation 6
Implementation 7
Implementation 8

The collision-free opening of the tilt and slide balcony doors instead of the turn ones allows optimal use of the interior space, because the open sashes do not enter the room. Thanks to the considerable size of the wings, a lot of light gets into the rooms, which combined with the noble appearance creates a unique comfort of living – not only for particularly demanding customers.

The system of “lift-up” sliding windows from Patio Life with wood lightly as a feather can move heavy terrace doors with a wing weight of up to 400 kg on a running rail up to 6.5 m long. The innovative idea is that instead of the whole wing, only the horizontal gaskets – after setting the handle to the right position.
This unique solution meets the requirements of the European standard DIN EN 13126-16, regarding lifting and sliding hardware, and in terms of handling comfort, it definitely exceeds competitive solutions. It meets the preferences of customers, using more and more large windows, and market trends also in individual housing. In addition, the hardware meets the requirements of the regulation in the field of energy and heat savings in relation to heavy sashes with appropriate panes.

Patio Life patio doors allow barrier-free access to a terrace or balcony and can be successfully used to divide rooms. In addition to the use in hotels and gastronomy, lift-and-slide systems are used with great pleasure in individual housing.

HANDLES

Handle 1
Handle 2
Handle 3

Patio Sliding Windows Roto Patio

Our standard tilt and slide system with the support of the Lizora Patio Z enables the execution of large-size sliding doors with a sash weight of up to 200 kg. It meets the preferences of customers, using more and more large windows, and market trends also in individual housing. In addition, the hardware meets the requirements of the regulation in the field of energy and heat savings in relation to heavy sashes with appropriate panes.

The collision-free opening of balcony doors with tilt and slide fittings instead of turn ones allows optimal use of the interior space, because open wings do not enter the room. Even large and heavy tilting and sliding elements can be slightly opened and moved to the side. Lizurej Patio Z is equipped with an integrated mechanism supporting the opening or closing of the sash during the rotation of the handle – thanks to it, there is no need to pull or squeeze large and heavy sashes during operation.

Tilt and slide doors create a comfortable exit to the terrace, balcony, passage to the winter garden or glazed outbuildings. In a smaller size – as a tilt and slide window – this solution perfectly suits the exam in the kitchen, in the work room or in the office.

Patio diagram
Patio door handle 1
Patio door handle 2

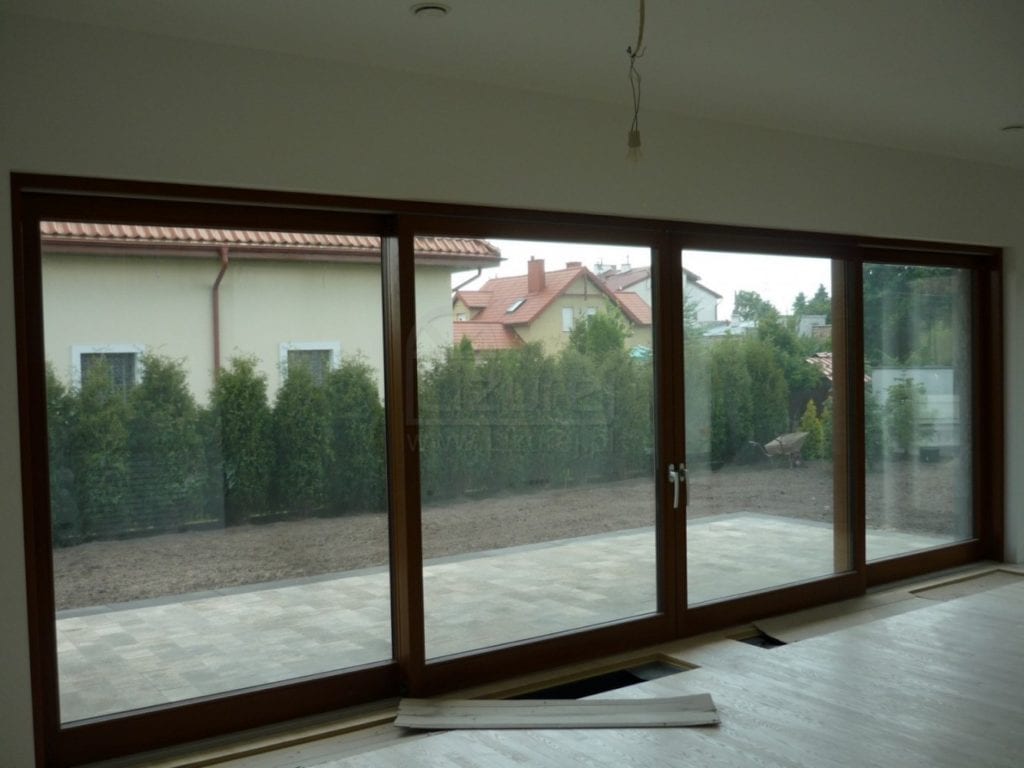

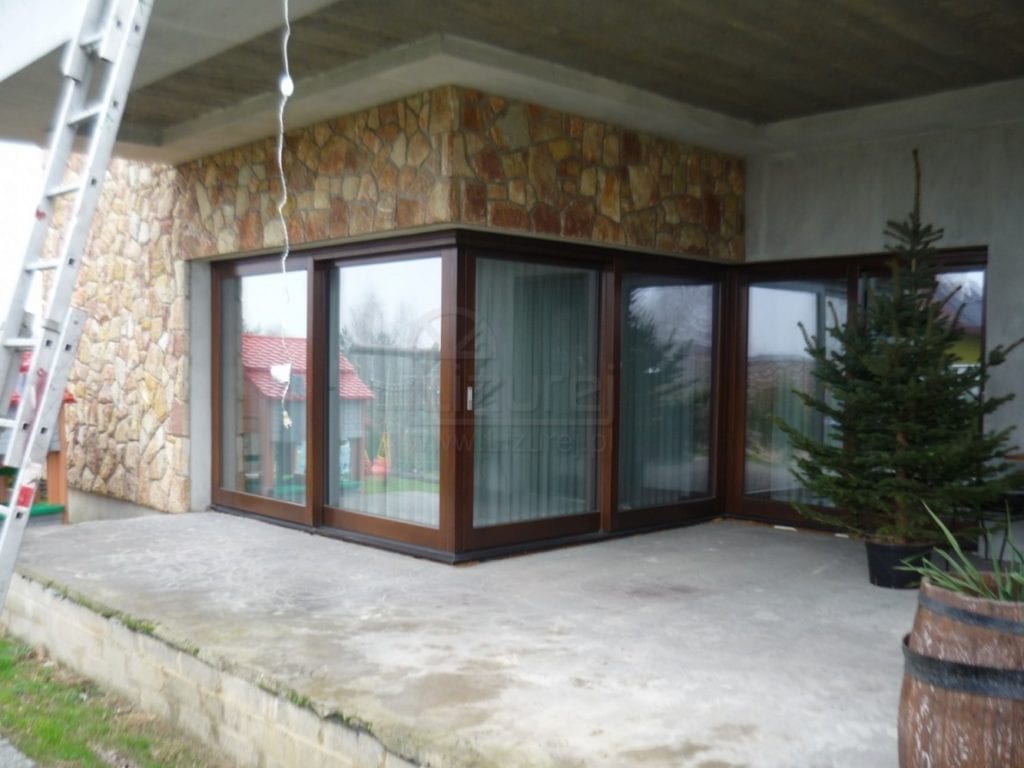

Patio sliding windows

Patio sliding
Example

Thanks to our systems of the Lizora Patio premium profiles, elegant opening of folding door systems with wings weighing up to 80 kg for a very large width is possible. The individual elements can be folded comfortably, saving space in the interior on the rail length up to 6 m.

Patio folding doors create a full swing to the terrace, the winter garden, conference rooms, cafes, restaurants or shops. If there is such a need – with a low threshold, no barriers. In addition, they work great in the role of the division of rooms. In addition to hotels and gastronomy, accordion systems are increasingly used in private construction.

Micro pine
Lita pine
Meranti
Solid larch
American Oak
European Oak
Bintagor
Sapelli
Eucalyptus
Golden oak 1
Golden oak 2
TEAK 4
Walnut 5
Mahogany 6
Dark nut 7
Dark Mahogany 8
Palisander 9
White RAL 9016
Swamp oak 11
American walnut 12
Walnut 13

LACQUER TECHNOLOGY
The varnish-resistant surface is obtained thanks to the SIKKENS ® four-layer coating system
– impregnating agent and primer in immersion technology in impregnation tanks,
– top coat which is applied twice under pressure (varnish in the new Power Feed Color-Mix technology from SIKKENS ®).

Nursing wooden windows live longer. The SIKKENS ® care set (special cleaning agent and care milk) is a product that is used to permanently preserve the high quality of coated wooden windows and doors. It increases durability and extends the guarantee of varnish.

Care instructions for carpentry
To ensure long-term high quality of new windows, they should be regularly cleaned and cared for with a care kit. In this way, the intervals between renovation windows are prolonged. This is possible thanks to the care kit consisting of a special cleaning agent and care milk.

A special cleaning agent should be applied to a cloth and remove dirt

Then, using a cloth, apply a lotion with quick movements – do not rub or polish

Wooden windows glisten with a new gloss and are resistant to weather conditions

Microcracks, scratches and small damages are very easily created, for example, by hitting the hail. Water penetrates these microcracks, which can cause blue stain. To prevent this, fill the cavities. A nursing milk is used for this purpose – an environmentally friendly and quick-drying product.
The water flows down with droplets over the surface covered with milk without penetrating into the wood structure. The special cleaning agent cleans deeply into the pores of the wood, dries out without traces and is water-soluble.
Regardless of whether the windows have been covered with varnish or glaze, this set refreshes their color and gives a new shine. With regular use of the care kit, the intervals between renovation windows or doors are extended, thus extending their durability.

Example of hail impact on pine wood windows (after one year of weathering)

Without the use of care milk: Through microcracks, water penetrates into the wood and causes blue stain

When using the care milk, the microcracks are closed. Water can not penetrate the wood

Care set: Special cleaning agent and care lotion

Proper renovation

Paint coatings covering wooden windows and doors should be renovated at regular intervals. The length of these intervals depends on the condition of the object and on weather conditions affecting the coating. Depending on the condition, we recommend renovation of covering coats every 4-5 years, and coatings glazed every 2-3 years.
The following environmental friendly, waterborne or solvent-based high-quality paint products from Sikkens are used for this purpose.

R01.1 – Uni – natural silver
R01.3 – Uni – titanium mat
R01.1 – Uni – natural silver
R05.3 – Uni – medium brown
R07.2 – Uni – white

Handle with a code

–   closing mechanism equipped with 5 buttons
–  4 buttons for driving the 6-digit code of opening 1 button for closing
–  green flash (opening signal), red flash (closing signal)
–  possible change of user code
–  the code is constant when the battery is dropped or replaced
–  product supported by 2 V3, CR2 batteries, which gives about 100,000 operations

Exclusive handles

Glass in windows is an important thermal element. In our offer we have several packages to choose from. The type of package depends on the construction of the frame and window sash.


Thermal packages

Glass in a double-glazed single-chamber package with a warm spacer frame - a basic package with a heat-transfer coefficient of U = 1,0W / m2k. Used for windows with a basic DJ68 profile
Glass in a triple-chamber two-chamber package with a warm spacer frame - an energy-saving package with a heat coefficient of U = 0.7W / m2k. Used for windows with a basic DJ68 profile
Glass in a three-pane two-chamber package with a warm spacer frame - energy-saving package with a heat-transfer coefficient of U = 0.5W / m2k. Used for windows ENERGY SAVINGS DJ78 profile and PASSIVE windows DJ92
Glass in a triple glazed three-chamber package with a warm spacer frame - energy-saving package with a heat coefficient of U = 0.4 W / m2k. Used for windows ENERGY SAVINGS DJ78 profile and PASSIVE windows DJ92

Safe and anti-burglary packages

(safety glass can be combined with thermal packages)

VSG safety glass 6.4 mm - O2
Safety glass VSG 8.8 mm - P2
Anti-breaking glass VSG 9,5 mm - P4

Packets with ornaments

white hen
white bark
brown bark
groats
altanta
altdeutsch white
altdeutsch brown
chinchilla white
chinchilla brown
katedral catedral
white matt delta
delta white
delta brown
mastercare
masterligne
masterpoint

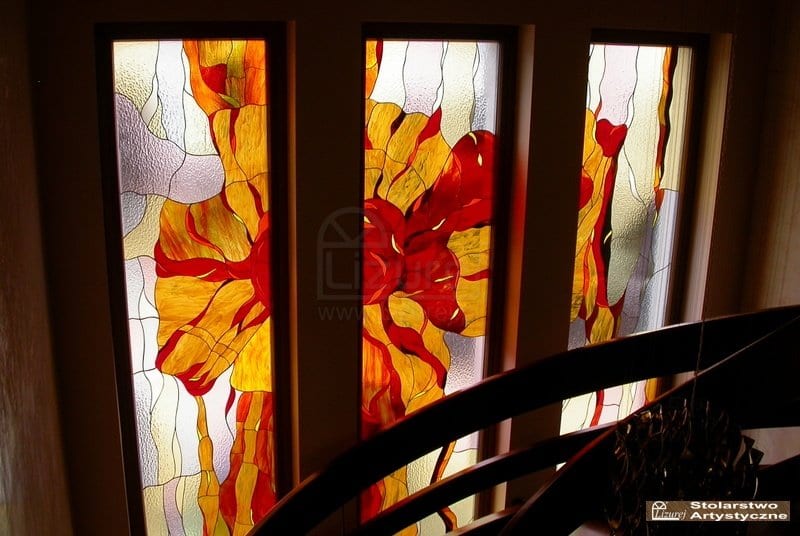

Packages with stained glass

The design of the stained glass windows and artistic glass of the company Lizurej is the result of many years of activity, testing new decoration techniques and constant experimentation with their combination. A wide range of colors and textures of stained glass, high quality of used components, experience in designing individual arrangements, make the products of the company Lizurej exclusive and unique.

Implementation 1
Implementation 2
Implementation 3
Implementation 4
Implementation 5
Implementation 6
Implementation 7
Implementation 8
Implementation 9
Implementation 10
Implementation 11

Deventer – Energy-saving seals

The new generation of sealing profiles made of high quality Sylikon Window System guarantees reliable protection against heat loss and sound penetration.

  • made of high quality silicone characterized by excellent mechanical properties
  • designed for optimal smoke and soundproofing
  • comfortable closing of windows
  • good memory of the original shape with static load
  • resistance to low temperatures
  • hardened gasket base stable assembly
  • protection against longitudinal stretching
  • accurate and stable, joining in corners
  • confectioning the frames alternatively by cutting or welding the corners
  • universal fastening foot for secure seating

Q-LON – Energy-saving Seals

The combination of materials from which Q-LON profiles are produced, used in the production of energy-saving wooden windows, exceeds the components contained in other gaskets of this type in every respect. The confirmed K value: 0.033 is 10 times lower than in other mass-produced gaskets and confirms the energy-saving features of the product. Many years of research, constant technological development and high material requirements have made Q-LON one of the best gasket systems in the world.

The assembly is easy and fast. By cutting out a part of the gasket with special scissors, the problem of troublesome welding of the material in the corners is eliminated.

The suitability of Q-LON seals has been very positively tested for over 20 years of their use. Already over 100 million windows and doors have been equipped with Q-LON gaskets.

Cross-section of Q-LON gasket used in the production of energy-saving wooden windows by Lizure:

  1. Smooth, dirt-resistant surface made of polyethylene film.
  2. Very flexible soft foam filling made of polyurethane.
  3. Hard polypropylene skeleton of the gasket – no shrinkage and elongation
  4. Soft, flexible tip made of TPE (thermoplastic) – easy assembly, firm grip in the groove.

Roto Nt – tilt & turn hardware for windows and doors made of wood and PVC

In the system of Lizurej windows with Roto NT fittings, all system elements are integrated in the central locking. The system already contains a high level of anti-theft security in the basic version. It provides comfortable operation and enables seamless integration with electronic and mechanical accessories, eg alarm device, thermostat and ventilation. The elegant “silver look” gives the Roto NT a unique look.

BEAUTY IS HIS VALUE

ROTOsil is a steel with an exceptionally noble appearance. Wanting to offer customers a really sophisticated design, you can not miss the advantages of this exceptionally elegant coating. Shiny fittings are nothing special – ROTOsil is a modern look of matte silver, perfectly emphasizing the “Hightech” style of the Roto NT system. ROTOsil will give your customers the opportunity to individually create a unique interior, in accordance with the needs and spirit of the times.

Quality, not only superficially treated. ROTOsil out of appearance amazes with its durability.
A special galvanizing process has been developed over many years of research.
Achievement that only the industry leader can offer you.

WINDOWS WITH DIFFERENT SHAPES

Roto NT fittings can be used for windows of various sizes and shapes – even very small windows are not a problem here.



STANDARDIZING MICROVENTILATION

The Roto NT microventilation coupling, which has been completely rebuilt, consists of only one element on the frame, which can also be mounted on the finished window. Fast and simplest possible assembly without using any templates: just screw the item next to the corner hook.

BLOCKING OF AN ERROR LOCATION OF A BUCKLE

The wrong position of the handle is blocked
The integrated lift enables the sash to be always on the same level and prevents it from hanging on the side of the handle; blocking the incorrect position of the handle, however, excludes window handling errors.

ROLLER ROLLERS

Each of the three types of rollers is characterized by optimized mechanical properties and the possibility of simple adjustment.
Thanks to the identical axis of the screw holes, the basic hooks can be easily and quickly replaced with full anti-theft hooks (13 mm axis for wooden windows).

ANTI-WARMING FITTINGS IN THREE STANDARDS

Anti-theft window resistance class 1 (WK1): basic protection against the use of force, eg kick, nipping, shoulder thrust.
Anti-theft window resistance class 2 (WK2): protection against the use of tools such as: screwdriver, pliers, pincers, wedges.
Anti-theft window resistance class 3 (WK3): additional protection against the use of crowbar.

FIND THE DIFFERENCE Roto NT Designo

Owners of a beautiful home generally have high expectations with respect to window aesthetics. According to the current trends, the less visible the “mechanism” of the window, the nicer it is. Hinges and other hardware components could interfere with the harmony and minimalism of the window form. In this field, Roto NT Designo sets new standards.





Roto NT Designo

WINDOWS FOR CHILDREN’S ROOM Roto TiltFirst

Window to the child’s room with protection against unauthorized opening:

The task of the window is to protect the interior of the room from adverse weather conditions (rain, wind, ambient temperature), noise, dust. The water that flows from the window during the rain stays on the bottom part of the window frame for the longest time causing an accelerated destruction of the window. In order to drain water out of the window outline and prevent it from penetrating into the interior, aluminum gutter drips are used. The drip caps used by our company can be divided into two subgroups:

  • drip caps made entirely of aluminum,
  • drip caps, in which part of the aluminum was replaced with plastic (so-called termookapniki), which were created to eliminate the occasional problem of freezing the window seal to the drip edge,
  • glazing beads mounted on the lower outer part of the window sash provide effective protection of the window part exposed to weather conditions. After this part of the window flows all the water retained by the glass, while in extreme conditions, this element is exposed to high temperature and UV radiation, which results in cracking and peeling of the varnish coating. Summing up, it can be concluded that the durability of this element significantly determines the lifetime of the entire window

Available colours:

Eaves profiles covered with wood:

Drip cap Aluron
Wooden drip cap
Drip Lux
Drip softline

Inter-pillar gusset:

Available widths:

  • 8mm
  • 16mm
  • 26mm
  • 45mm

Available colours:

  • White 9010
  • Gold mat 18mm, 26mm
  • Złoty połysk 8mm
  • Srebrny
  • RAL 8022
  • RAL 8017
  • Drewnopodobny “mahoń”
  • Drewnopodobny “jasny dąb”
  • Drewnopodobny “średni dąb”
  • Drewnopodobny “ciemny dąb”
  • Drewnopodobny “złoty dąb”
Implementation 1
Implementation 2

A glued stick

Available widths:

  • any

Available colours:

  • The color of the muntins is free
  • NP RAL all but metallic
  • The entire range of Lizurej & Sikkens external colors
Implementation 1
Implementation 2
Implementation 3

Veneer mottled stick

Available widths:

  • any

Available colours:

  • The color of the muntins is free
  • NP RAL all but metallic
  • The entire range of Lizurej & Sikkens external colors
Implementation 1
Implementation 2

Opened door

Available widths:

  • any
Available colours:
  • The color of the muntins is free
  • NP RAL all but metallic
  • The entire range of Lizurej & Sikkens external colors
Implementation 1
Implementation 2
Implementation 3
Implementation 4

Constructional small spigot

Available widths:

  • any, min 55mm
Available colours:
  • The color of the muntins is free
  • NP RAL all but metallic
  • The entire range of Lizurej & Sikkens external colors
Implementation 1

Constructional big spigot

Available widths:

  • any
Available colours:
  • The color of the muntins is free
  • NP RAL all but metallic
  • The entire range of Lizurej & Sikkens external colors
Implementation 1
  • Sandblasted glass
  • Anti-theft glass
  • Stained glass
  • Anti-theft fittings
  • Handles with a key and a button

Diffusers – ventilation

EMM – hygrostered diffusers. The air flow is dependent on the content of water vapor (relative humidity) inside the room. The control sensor is a polyamide strip, which under the influence of changes in relative humidity in the air changes its length, which causes greater or lesser opening of the throttle, and thus bringing a larger or smaller stream of air into the room. The diffusers operate in the range of 35 to 70% relative humidity. If the room humidity is less than or equal to 35%, the diffuser is closed and the minimum air flow is supplied to the room. With increasing humidity, the diffuser opens and at 70% or more it achieves maximum efficiency. The diffusers are designed so that the outside air does not come into direct contact with the sensor. Thanks to this, the conditions in the rooms are analyzed, not outside.

Technical parameters (confirmed by tests at Instytut Techniki Budowlanej):

Nominal flow: 35 m3/h Δp 10 Pa

Acoustic attenuation:
Closed ventilator (infiltration 5 m3 / h): Dnew = 36 dB
The ventilator is open: Dnew = 33 dB

colors of the ventilator
ventilator

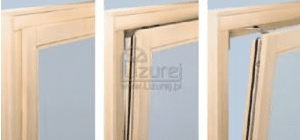

Automatic opening and closing of windows

Modern windows are so tight that they almost do not let air through. The more important is the natural ventilation of rooms, the intensity of which should not be left to chance. Intelligent sensors and control clocks in conjunction with the E-Tec Drive window drive ensure air exchange exactly to your needs: for example in the bedroom, in the bathroom after bathing or after a long visit of guests in the salon. By the way, this solution helps you save energy.

E-Tec Drive – the most important benefits at a glance:
A hidden window drive is not visible on the window and does not disturb its perfect appearance.
Reliable locking of the wing after closing due to the integration of the drive in the fitting circuit.
Versatile use for wooden, PVC and aluminum windows
Various control options Reliable thanks to the massive construction and only one drive The window can be opened and closed at any time with the handle.

Electronic guard in the windows – alarm detectors

MVS – wired control system for opening and closing the window.
When the magnetic field is interrupted, eg when the window is opened, when the alarm is armed, hidden under the leaf’s sash, the sensor sends a signal to the alarm control panel. Connecting the sensor to the alarm system usually effectively deters burglars. This sensor is available in all the most important security classes.

Glass break sensor Oversees glazing, for example in easily accessible windows and winter gardens
The DAS safety switch for the extraction of vapors allows the use of a vapor extraction in accordance with the regulations
Windows with MTS sensor A window sensor with a wide range of applications controls heating, ventilation and air-conditioning of rooms

WINDOWS FOR CHILDREN’S ROOM Roto TiltFirst

Example 1
Example 2
Example 3

TiltFirst handle (“tilting before opening”)

  1. wing ajar (handle horizontally)
  2. the wing is open only after turning the key
